Cambium PTP450I高带宽远距离无线网桥

PTP450i无线网桥产品
    • Cambium Network 450平台包括所有PMP450i以及PTP450i无线产品。450i产品平台是扩展性的工业级无线宽带解决方案，PTP450I是一款 频率：4900 - 5925 MHz；带宽：300M；远传输距离：200公里的高带宽远距离无线网桥,广泛应用于视频监控、数据和语音。

    • PTP450I 高带宽远距离无线网桥关键特性
      支持4900MHz-5925MHz的超宽频无线模块，并具备动态干扰过滤功能，改善发射功率和提高接收灵敏度
    • 坚固耐用的金属外壳：专为严苛环境设计，满足IP66和IP67标准。
      可选ATEX/HAZLOC认证型号，可用于在危险环境部署。
    • 动态干扰过滤：提供的噪音隔离技术，提高性能表现
    • 升级的FPGA和SoC架构使处理能力相比PTP450提高了三倍
    • 多功能AUX端口：允许更大的部署灵活性，可以直接连接一个摄像机或者其它PoE
      40MHz频宽下，带宽达到300Mbps

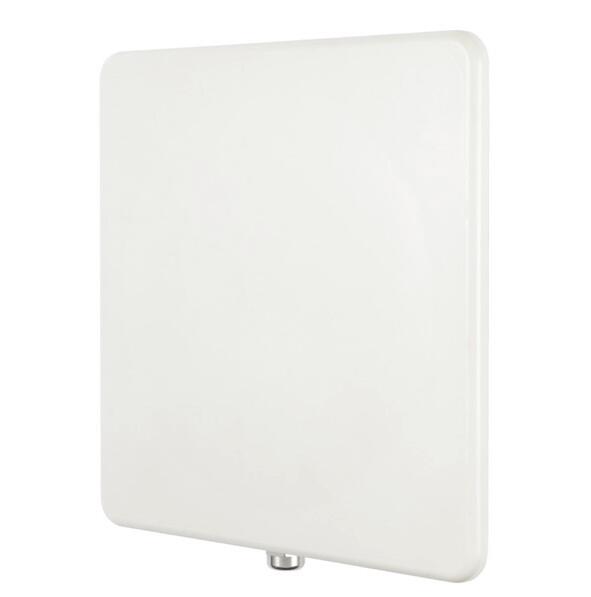

PTP450I内置天线
PTP450I外接天线型

C050045B002A PTP450i 内置天线


PTP450i内置天线型，频率：4900 - 5925 MHz；带宽：300M，+19 dBi H+V, integrated

C050045B001A PTP450i 外接天线型



PTP450i外接天线型，频率：4900 - 5925 MHz；带宽：300M；远传输距离：200公里。



PTP450i高带宽远距离无线网桥技术规格书：

Product
      RoW US EU DES only
Model Numbers 5 GHz Connectorized C050045B001A C050045B003A C050045B005A C050045B007A
  5 GHz Integrated C050045B002A C050045B004A C050045B006A C050045B008A

Spectrum
Channel Spacing Configurable on 2.5 MHz increments
Frequency Range 4900 - 5925 MHz
Channel Width 5 MHz, 10 MHz or 20 MHz

Interface
MAC (Media Access Control) Layer Cambium Networks proprietary
Physical Layer 2x2 MIMO OFDM
Ethernet Interface 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)
Protocols Used IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP
Network Management HTTP, HTTPS, Telnet, FTP, SNMP v3
VLAN 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID

Performance
ARQ Yes
Modulation Levels (Adaptive) MCS Signal to Noise Required (SNR, in dB)
2X QPSK 10
4X 16QAM 17
6X 64QAM 24
8X 256QAM 32
Maximum Deployment Range Up to 58 to 400 miles minimum, depending on configuration
Latency 3 - 5 ms, typical
GPS Synchronization Yes, via Autosync (CMM3, CMM4)
Quality of Service Diffserve QoS

Link Budget
Antenna Beam Width 10° azimuth for 23 dBi integrated antenna
Antenna Gain +23 dBi H+V, integrated or external
Transmit Power Range 40 dB dynamic range (to EIRP limit by region) (1 dB step)
Maximum Transmit Power +27 dBm combined output

Physical
Antenna Connection 50 ohm, N-Type (Connectorized version only)
Surge Suppression EN61000-4-5: 1.2us/50us, 500 V voltage waveform
Recommended external surge suppressor: Cambium Networks Model # C000000L033A
Mean Time Between Failure > 40 Years
Environmental IP66, IP67
Temperature / Humidity -40°C to +60°C (-40°F to +140°F), 0-95% non-condensing
Weight Connectorized Approx. 2.0 kg (4.5 lbs.)
  Integrated Approx. 2.5 kg (5.5 lbs.)
Wind Survival 190 km/hour (118 mi/hour)
Dimensions (HxWxD) Connectorized 26.0 x 13.4 x 6.4 cm (10.25” x 5.25” x 3.25”)
  Integrated 31.0 x 31.0 x 6.4 cm (12” x 12” x 2.5”)
Power Consumption 15 W typical, 25 W max, 55 W max with Aux port PoE out enable
Input Voltage 48-59 V DC, 802.3at compliant
Mounting Wall or Pole mount with Cambium Networks Model # N000045L002A

Security
Encryption 56-bit DES, FIPS-197 128-bit AES

Certifications
Industry Canada TBD (4.9, 5.4, 5.8 GHz)
FCC ID TBD (4.9, 5.4, 5.8 GHz)
CE EN 301 893 v1.7.1 (5.4 GHz)
  EN 302 625 v1.1.1 (Broadband Disaster Relief, 4.9 GHz, 5.1 GHz)
  EN 302 502 v1.2.1 (5.8 GHz)
